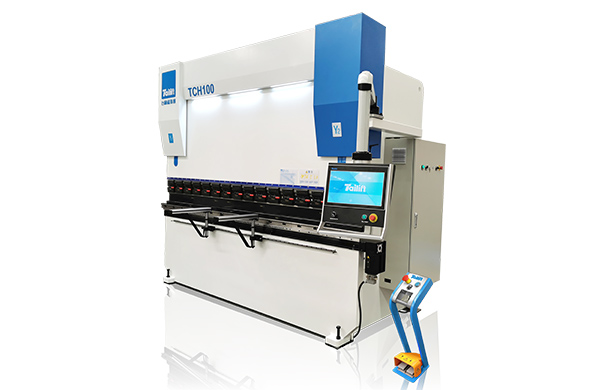

CNC Press Brake TCH Series

CNC Press Brake TCH Series

  • CT15 Controller
  • Hoerbiger Servo Hydraulic System
  • Synchronous Position Feedback On Both Sides With Linear Scale
  • The back gauge is equipped with servo motor and high-precision ball screw
Request Information
Download PDF

Product Discerption

Specifications

Model Unit TCH50 1.6M TCH70 2M TCH70 2.5M TCH100 2.5M TCH100 3.2M
Force kN 500 700 700 1000 1000
Bending Length mm 1600 2000 2500 2500 3200
Distance Between Side Frames mm 1230 1700 2100 2100 2700
Throat mm 260 320 320 320 320
Bending Stroke mm 200 200 200 250 250
Effective Open Height mm 495 495 495 545 545
Operating Height mm 595 595 595 645 645
Drive Motor kw 7.5 11 11 15 15
Oil tank Capacity L 190 230 280 380 380
X-Axis speed mm/s 320 320 320 320 320
R-Axis speed mm/s 320 320 320 320 320
Y-Axis Rapid traverse speed mm/s 250 250 230 240 240
Y-Axis working speed mm/s 12 12 12 11 11
Y-Axis raising speed mm/s 200 200 200 180 160
Dimensions Length (B) mm 1700 2250 2780 3010 3710
Width ( C ) mm 1480 1580 1580 1670 1670
Height (A) mm 2100 2130 2130 2728 2720
Weight kg 4000 5300 6100 7800 9100

Model Unit TCH100 4.1M TCH160 2.5M TCH160 3.2M TCH160 4.1M
Force kN 1000 1600 1600 1600
Bending Length mm 4100 2500 3200 4100
Distance Between Side Frames mm 3300 2100 2700 3300
Throat mm 320 400 400 400
Bending Stroke mm 250 250 250 250
Effective Open Height mm 545 545 545 545
Operating Height mm 645 620 620 620
Drive Motor kw 15 18.5 18.5 18.5
Oil tank Capacity L 420 300 330 430
X-Axis speed mm/s 320 320 320 320
R-Axis speed mm/s 320 320 320 320
Y-Axis Rapid traverse speed mm/s 220 200 200 200
Y-Axis working speed mm/s 13 13 13 12
Y-Axis raising speed mm/s 160 180 160 160
Dimensions Length (B) mm 4610 3030 3730 4630
Width ( C ) mm 1770 1680 1680 1790
Height (A) mm 2720 2720 2720 2720
Weight kg 8700 10100 12100

Model Unit TCH160 5.1M TCH160 6.1M TCH200 3.2M TCH200 4.1M
Force kN 1600 1600 2000 2000
Bending Length mm 5100 6100 3200 4100
Distance Between Side Frames mm 4600 5600 2700 3600
Throat mm 400 400 400 400
Bending Stroke mm 250 250 250 250
Effective Open Height mm 545 545 545 545
Operating Height mm 620 620 620 620
Drive Motor kw 18.5 18.5 22 22
Oil tank Capacity L 430 430 380 420
X-Axis speed mm/s 320 320 320 320
R-Axis speed mm/s 320 320 320 320
Y-Axis Rapid traverse speed mm/s 160 150 180 160
Y-Axis working speed mm/s 12 12 13 13
Y-Axis raising speed mm/s 120 110 160 150
Dimensions Length (B) mm 5630 6630 3730 4630
Width ( C ) mm 1800 1800 1680 1790
Height (A) mm 2960 3160 2720 2720
Weight kg 17000 20000 10500 14100

Model Unit TCH250 2.5M TCH250 3.2M TCH250 4.1M TCH250 5.1M
Force kN 2500 2500 2500 2500
Bending Length mm 2500 3200 4100 5100
Distance Between Side Frames mm 2100 2700 3300 4600
Throat mm 400 400 400 400
Bending Stroke mm 250 250 250 250
Effective Open Height mm 545 545 545 545
Operating Height mm 645 645 645 645
Drive Motor kw 37 37 37 37
Oil tank Capacity L 320 400 430 430
X-Axis speed mm/s 320 320 320 320
R-Axis speed mm/s 320 320 320 320
Y-Axis Rapid traverse speed mm/s 150 150 130 120
Y-Axis working speed mm/s 13 13 12 12
Y-Axis raising speed mm/s 160 150 130 100
Dimensions Length (B) mm 3050 3750 4650 5650
Width ( C ) mm 1920 1920 1920 1920
Height (A) mm 2975 2975 2975 3125
Weight kg 11700 14000 16000 21200

Model Unit TCH250 6.1M TCH320 3.2M TCH320 4.1M TCH320 5.1M TCH320 6.1M
Force kN 2500 3200 3200 3200 3200
Bending Length mm 6100 3200 4100 5100 6100
Distance Between Side Frames mm 5600 3700 3300 4600 5600
Throat mm 400 400 400 400 400
Bending Stroke mm 250 310 310 310 310
Effective Open Height mm 545 600 600 600 600
Operating Height mm 645 695 695 695 695
Drive Motor kw 37 45 45 45 45
Oil tank Capacity L 460 410 460 460 460
X-Axis speed mm/s 320 320 320 320 300
R-Axis speed mm/s 320 320 320 320 220
Y-Axis Rapid traverse speed mm/s 120 110 110 100
Y-Axis working speed mm/s 10 12 12 10 10
Y-Axis raising speed mm/s 100 100 100 90 90
Dimensions Length (B) mm 6650 3930 4830 5830 6830
Width ( C ) mm 1920 2110 2110 2150 2150
Height (A) mm 3325 3205 3205 3690 3855
Weight kg 24600 17700 20300 26100 30400
