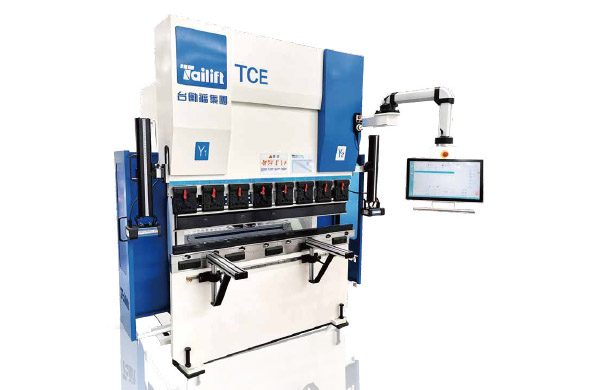

CNC Press Brake TCE Series

High speed precision, ideal for bending small and mediumsized parts.

Ully electric and oil-free, low energy consumption, lowmaintenance.

Friendly controller with adjustable working table height formore convenient operation.

Compact machine footprint, can integrate into variousproduction processes, and easy for transportation.

Product Discerption

Model		Unit	TCE50 1.6M	TCE70 2M	TCE70 2.5M	TCE100 2.5M
Force		kN	500	700	700	1000
Bending Length		mm	1600	2000	2500	2500
Distance Between Side Frames		mm	1230	1700	2100	2100
Throat		mm	260	320	320	320
Bending Stroke		mm	200	200	200	250
Effective Open Height		mm	495	495	495	545
Operating Height		mm	595	595	595	645
Drive Motor		kw	11×2	21×2	21×2	25×2
X-Axis speed		mm/s	320	320	320	320
R-Axis speed		mm/s	320	250	250	250
Y-Axis Rapid traverse speed		mm/s	200	200	200	200
Y-Axis working speed		mm/s	1~30	1~30	1~30	1~30
Y-Axis raising speed		mm/s	200	200	200	200
Dimensions	Length (B)	mm	1780	2260	2830	2890
	Width ( C )	mm	1420	1520	1520	1710
	Height (A)	mm	2100	2360	2360	2510
Weight		kg	4000	5100	6200	8100
