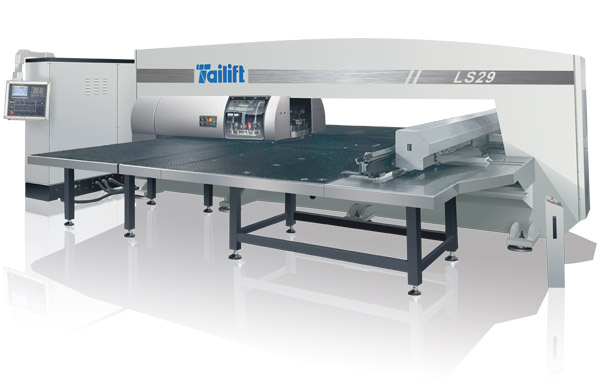

LS29 Electro Servo LS29

Tailift newly launched,LS29, AC Servo drive and numerical control technology. Featured with high speed, high precision,energy saving, and loe noise. Equipped over-load protection, LS29 is an effective implement for thinner sheet metal.

LS29 combined with processing abilities of punching, forming, roller cutting and tapping, an all-in-one machine. Thr integration assEmbly reduces floor space requirements effectivelu. Low avarage electrivity consumption, energy-saving,elminating the hydraulic, This ECO friendly product is the major milestone for Tailift R&D.

Product Discerption

Specifications

Item	Unit	LS29
Punching Capacity	Ton	25
X Traverse Length	mm	2500±10
Y Traverse Length	mm	2000±10
Max Sheet Size	mm	2000×5000
Max Sheet Thickness	mm	6t(SS400) ; 3t(SUS)
Max Mass of Material	kg	150
X Axis Traverse Speed	m/min	70
Y Axis Traverse Speed	m/min	70
Max Traverse Speed	m/min	100
Punching Speed at 25mm pitch	hits/min	320
Tool Type		Thick turret
Max Punching Diameter	mm	88.9
Number of Tool Stations		28/32
自動轉刀刀站數	Pcs	2B
Turret Rotating Speed	rpm	30
Auto Index Rotating Speed	rpm	40
Ram Stroke Distance	mm	0-31
Working Table		Brush + Ball
Number of Sheet Clamps	pcs	3
Air Supply	NL/min	250
Air Pree	bar	5
Serial Interface		RS232 / RJ45 / PCMCIA
Punching Precision	mm	±0.1
Machine Dimensions(LxWxH)	mm	6500 × 5200 × 2250
Machine Net Weight (Approx)	kg	20000

Specifications are subjects to change without prior notice.
Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.
