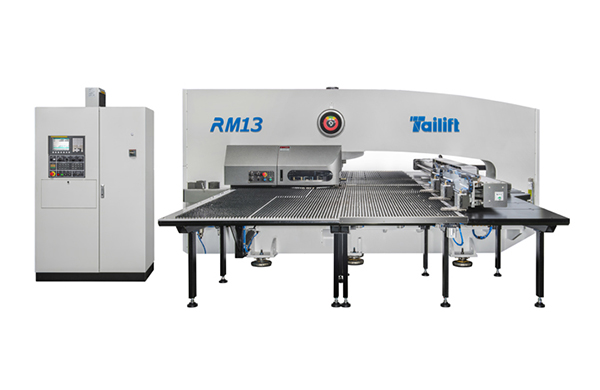

Mechanical RM13

RM series is new generation, high accuracy, durable feature, the new design for lower turret, efficiently enhance the durable of concentricity and service life. The integration assembly, reduce floor space requirement and hydraulic, fulfill the ideal of ECO-friendly.

Product Discerption

Specifications

Item	Unit	RM13
Punching Capacity	Ton	20
X axis Travel Length	mm	2490±10
Y axis Travel Length	mm	1250±10
Max sheet Size	mm	1250×4980
Max sheet Thickness	mm	6.35
Max Sheet Weight	kg	110
X axis Traverse Speed	m/min	80
Y axis Traverse Speed	m/min	70
Max Traverse Speed	m/min	105
Punching Speed at 25mm pitch	hit/min	210
Nibbling Speed	hit/min	350
Tool Type		Thick Turret
Max Punching Diameter	mm	88.9
Number of Tool Station	PCS	34
Number of Auto Index Station	PCS/Type	2B
Turret Rotating Speed	rpm	30
Auto Index Rotating Speed	rpm	50
Ram Stroke	mm	32
Working Table		Brush+Ball
Supporting Ball Set
Number of Clamp	PCS	3
Power Supply	KVA	19
Air Supply	NL/min	250
Oil Tank Volume	Litre	85
Air Pressure	Bar	5
Machine Dimension(LxWxH)	mm	510246872110
Machine Weight (approx.)	kg	13000
Control Cabinet Dimension	mm	12006001900
CNC Controller		FANUC Oi-PF
Number of Controllable axis	Axis	4
Memory Capacity	KB	512
Serial Interface		RS232/RJ45/PCMCIA
Accuracy	mm	± 0.1

Specifications are subjects to change without prior notice.
Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.
