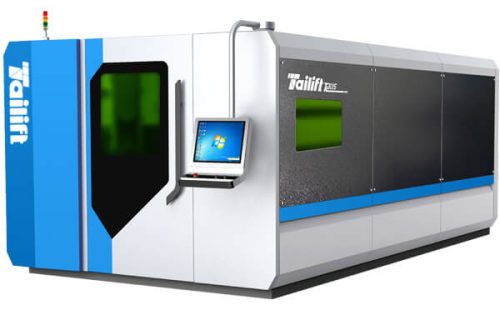

TL Series-Classic (Full Splash Cover with Exchange Table Cutting Machine) TL3015

TL Series-Classic (Full Splash Cover with Exchange Table Cutting Machine) TL3015

  • User friendly
  • Fast cutting speed, low operating cost and fast return on investment.
  • Auto Edge finding. Effectively used in big sheets.
  • The electric energy conversion heat energy conversion rate is high, and an effective power saving effect is achieved.
  • Low Maintenance. without adjustments of light path and reflect lens, no service requirements.
  • Closed Frame Base with Gantry Type (Dual-Drive) Integrated Servo Control System to Increase Working Speed and Efficiency.
  • Double Working Table Saves Loading/Unloading Time and Increase Productivity.
  • Full Covered Machine Body with OD6+ Fiber Protection Safety Glass Window Ensure the Operator Safety and Effectively controls the Laser Radiation in the Environments, Good Light Probation.
Request Information
Download PDF

Product Discerption

Specifications

Model Unit TL3015-12 TL3015-20 TL3015-25 TL3015-30
Resonator W 1200 2000 2500 3000
Movement method 3xes simultaneausly controlled
Control method Cypcut+Advantech controller
Machining range(X*Y) mm 1500*3000
Travel(X*Y*Z) mm 1525*3050*150
Acceleration 1.5G
Min.positioning accuracy(X/Y) mm 0.05/500
Repeatability accuracy mm ±0.02
Laser head Manual focus adjustment/ Automatic (OP)
Table type Pallet Changer
Pallet change time s 10~15
Machining dimensions(L*W*H) mm 8209x2300x2400
Machining accuracy ±0.10
Machine weight kg 7000
