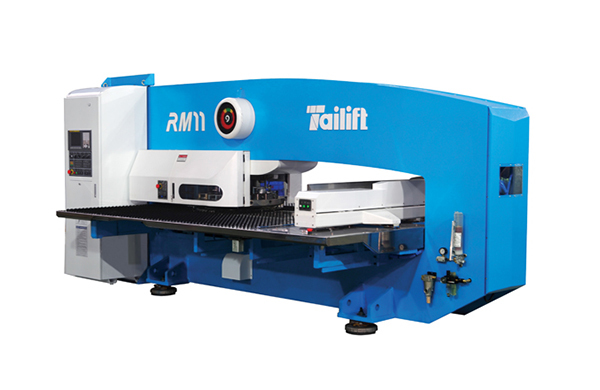

Mechanical RM11

RM series is new generation, high accuracy, durable feature, the new design for lower turret, efficiently enhance the durable of concentricity and service life. The integration assembly, reduce floor space requirement and hydraulic, fulfill the ideal of ECO-friendly.

Product Discerption

Specifications

Item	Unit	RM11	RM11-S
Punching Capacity	Ton	20	20
X axis Travel Length	mm	1250±10	1250±10
Y axis Travel Length	mm	1250±10	1250±10
Max sheet Size	mm	1250*2500	1250*2500
Max sheet Thickness	mm	6.35	6.35
Max Sheet Weight	kg	110	110
X-Axis Travel	m/min	70	70
Y-Axis Travel	m/min	60	65
Max Traverse Speed	m/min	92	95.5
Punching Speed at 25mm pitch	hit/min	210	200
Nibbling Speed	hit/min	350	350
Tool Type		Thick Turret	Thick Turret
Max Punching Diameter	mm	88.9	88.9
Number of Tool Station	PCS	34	34
Number of Auto Index Station	PCS/Type	2B	22B
Turret Rotating Speed	rpm	30	30
Auto Index Rotating Speed	rpm	50	50
Ram Stroke	mm	32	32
Working Table		Brush	Brush
Supporting Ball Set		Optional	Optional
Number of Clamp	PCS	2	2
Power Supply	KVA	15	15
Air Supply	NL/min	250	250
Oil Tank Volume	Litre	85	85
Air Pressure	Bar	5	5
Machine Dimension(LxWxH)	mm	452026402145	452026402145
Machine Weight (approx.)	kg	11000	11000
Control Cabinet Dimension	mm	7005251880	7005251880
CNC Controller		FANUC Oi-PD	Siemens 802d sl G/N pro
Number of Controllable axis	Axis	4	4
Memory Capacity	KB	512	3060
Serial Interface		RS232/RJ45/PCMCIA	RS232C+RJ45+USB
Accuracy	mm	±0.1	±0.1

Specifications are subjects to change without prior notice.
Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.
