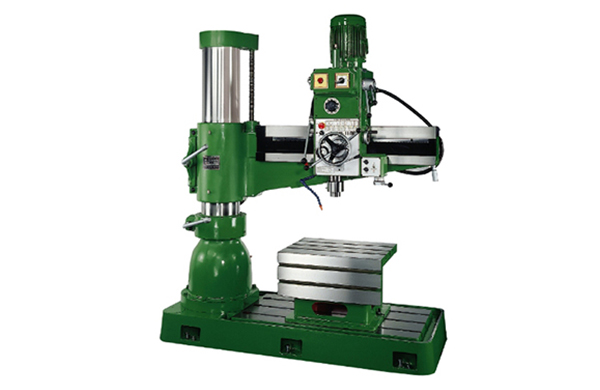

Manual Clamping TPR-1100

Adopts mechanic switch with forward/ reverse functions and longer service life with low damage.
The arm is made of high-class cast-iron. Arm slide is under strick heat-treatment and grinding.
3HP motor can provide diverse speed selection under heavy-duty cutting.
The main spindle is balanced by special spring. And is more durable than all traditional balance mechanism.
The over-load protective devices can secure the operator against injury.

Product Discerption

MODEL			TPR-1100
Dai.of column			260	A
Distance from column surface to spindle center , Max			1120	D+C
Distance from column surface to spindle center , Min			270	C
Travel of spindle head			850	D
Distance from base surface to spindle end , Max			1280	E
Distance from base surface to spindle end , Min			480	F
Elevating height of Arm			560	E-F-I
Effective area of box table			635x520x415	L×K×H
Dimension of base			1720x715x185	R×S×Q
Taper hole spindle			MT#4
Stroke of spindle			240	I
R.P.M of spindle (rpm x steps)		50HZ	37-1253×12 steps
R.P.M of spindle (rpm x steps)		60HZ	44-1500×12 steps
Feed of spindle (rev. x steps)			0.05, 0.09, 0.15×3 steps
Main motor (HP)			3(two speed motor)
Elevating motor (HP)			1HP
Hydraulic clamping motor (HP)
Coolant equipment (HP)			1/8 HP
Machine height from floor (Max.)			2570	M
Base + column height			1990	G
Net weight (approx)kgs			1800(kg)
Shipping weight (approx)kgs			1950(kg)
Shipping dimensions (LxWxH)			1880×860×2210
Capacity	Drilling	Steel	42Φ
	Drilling	Cast iron	55Φ
	Tapping	Steel	25Φ
	Tapping	Cast iron	38Φ
