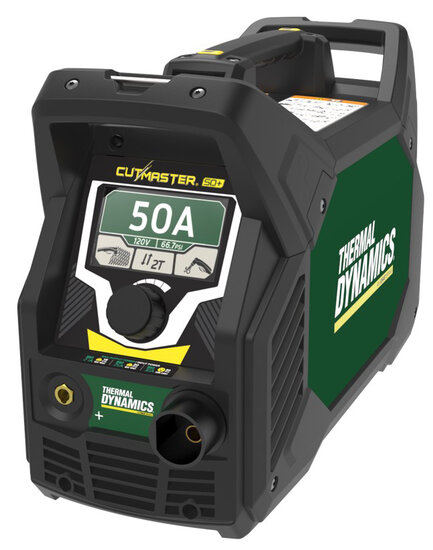

Cutmaster 50+ is the perfect combination of power
and portability for hand-held plasma cutting
machines. Plus means more, so we’ve added a
user-friendly 10.9 cm (4.3 in.) TFT LCD screen and
upgraded features that give you even more control
and flexibility to master any cut up to 25 mm (1 in.).
Together with the SL60 1Torch, it all adds up to the
total plasma cutting package.
Pierce Capacity : 16 mm (5/8 in.)
Cutting Capacity: 25 mm (1 in.)
Maximum Severance: 32 mm (1 1/4 in.)
Results may vary based on material used.
Portable and durable with three handles and
lightweight, industrial all-weather housing
Bright 10.9 cm (4.3 in.) TFT LCD display with glovefriendly
adjustment knob simplifies use and provides
greater control and flexibility
Includes industrial SL60 1Torch featuring 2T/4T
function, safety trigger lock, and double-tap trigger to
conserve bottled air
Switch between normal and grate cutting modes
Compatible with all ATC torch connections
Includes a complete package of general cutting and
gouging consumables for most applications
Post-cut air purge to expand consumable life
Industry leading 3-year warranty on power supply
and 1-year warranty on torch and leads
CNC functionality with pre-installed 14 pin CPC
receptacle and voltage divider which allows:
1. Start/Stop
2. OK to Move
3. Divided arc voltage
(ratio 20:1, 30:1, 40:1, 50:1, 80:1)
